Powermax B-2000

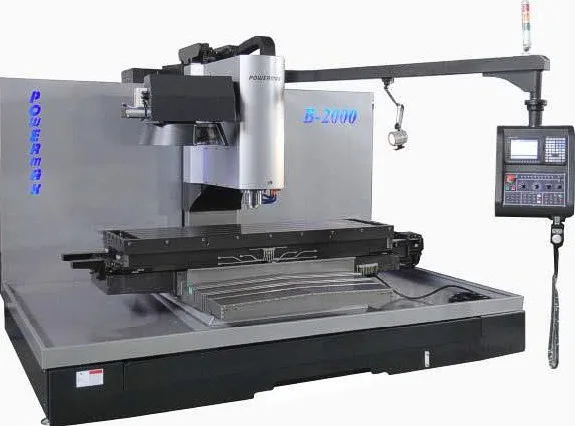

Powermax B-2000 CNC Vertical Machining Center
CNC vertical machining center with Mitsubishi M70 control.
Technical specifications
| Control unit | Mitsubishi M70 |
|---|---|
| Display | 4 renkli TFT |
| Table | 2200 x 600 mm |
| X / Y / Z | 2000 / 850 / 700 mm |
| Maximum table load | 1800 kg |
| Processor | 64Bit RISC, G05.1Q1 High Speed Mode |
| Memory | 2 GB |
| Communication | RS232, 38400 bps |
| Remote buffer | High speed remote buffer (400 blok) |
| Spindle motor | 11 kW, 8.000 rpm dijital servo Mitsubishi, yağ soğutucu |
| Axis motors | 5 / 3,5 / 3,5 kW X,Y,Z direkt akuple dijital servo; Z eksen freni |
| Spindle | BT-40 |
| ATC magazine | 16 ATC (umbrella type) |
| Construction | Turcite-B kaplı prizmatik yatak; X 2 yollu, Y 4 yollu kutu kızak |
| Transformer | 28 kVA 380 V / 220 V |
| Machine weight | 8500 kg |
The Powermax B-2000 CNC vertical machining center is one of the machines in our park with a large table and axis capacity.
